Description

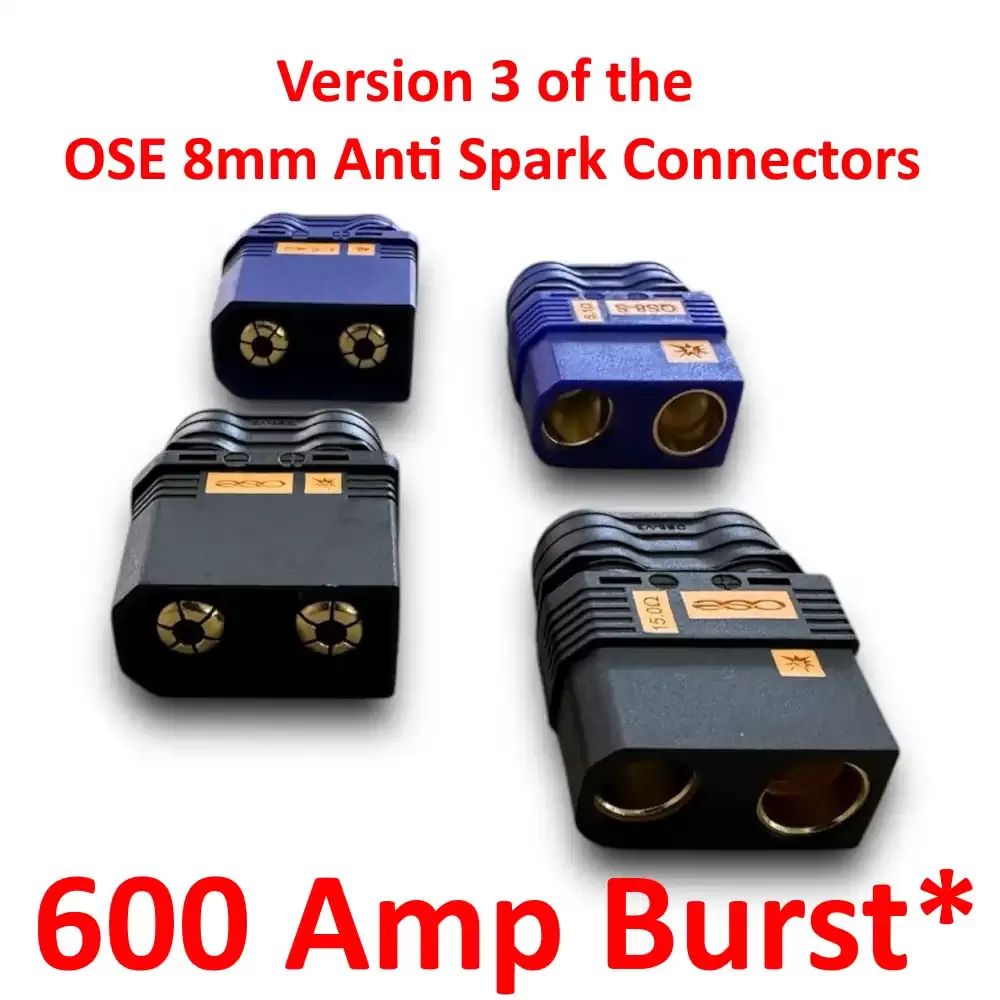

We’re excited to announce the release of Version 3 of the 8mm Anti Spark Connectors, marking 10 years since OSE first introduced this product. The new version boasts an impressive burst rate of up to 600 amps.
Discounts for quantities!
5 pairs @ $4.99 each
10 Pairs @ $4.49 each
100 Pairs @ $4.30 each
Anyone who has worked with high-voltage systems understands the concerns and potential connector damage caused by connector sparking. The 8mm bullet connectors with anti-spark system built in are an excellent solution for minimizing spark and protecting your equipment. They are a must-have for high-current/high-voltage brushless power systems.
Sold in pairs, each pair includes.
(1) Female Antispark connector
(1) Male Antispark connector
(2) Wire Covers
Options:
Black or Blue Housing
Specs:
Diameter: 8.00mm
Metal Material: Brass
Plastic Material: Nylon with fiber.
Flame retardant rating: UL94 V2
Temperature Range: -20C to +100C
Max Voltage: 500v dc
Continuous Current: 110A
Weight: 40G per set.
Total length including wire shield when connected: 60mm
Width: 27mm.
Max Wire Diameter: 6.8mm (6AWG)
*Peak Burst (2 to 5 seconds): 600amps
