Description

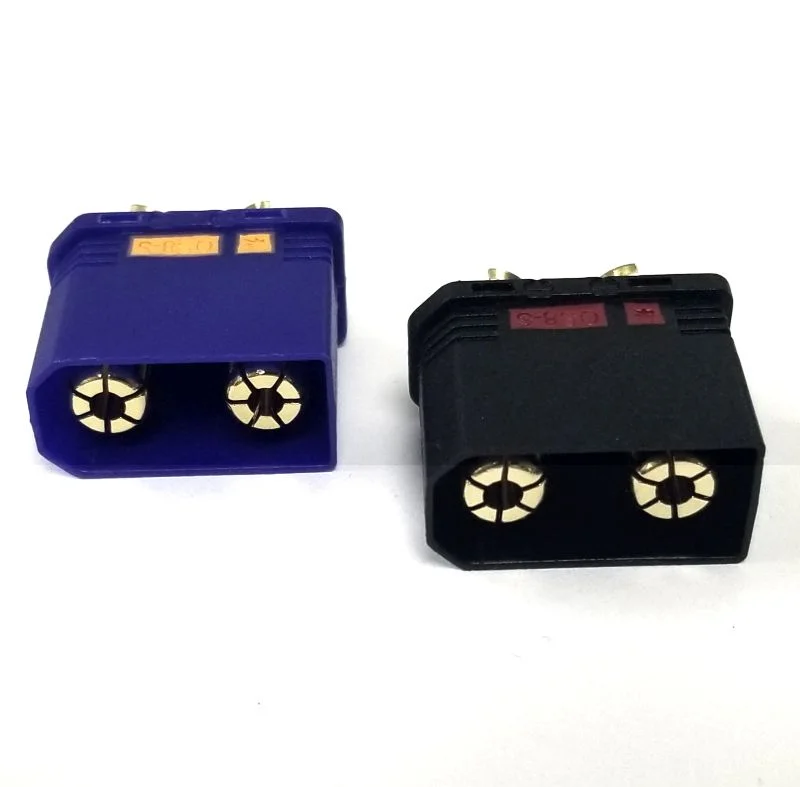

OSE 8mm Anti Spark Male Connector System. Available in Black or Blue Housing.
Anyone who’s ever powered up an 8s or higher power system knows the dreaded spark that scares us all to death and at the same time ruins the connector. The bullet connector has an anti-spark housing that will reduce this spark to almost nothing. These are a must for high current/high voltage brushless power systems.
Sold as a single Male connector
Includes
(1) Male Antispark connector
(1) Wire Cover
Options:
Black or Blue Housing
Specs:
Diameter: 8.00mm
Metal Material: Brass
Plastic Material: Nylon with fiber.
Flame retardant rating: UL94 V2
Temperature Range: -20C to +100C
Max Voltage: 500v dc Continuous Current: 110A
Peak Burst (2 to 5 seconds): 600a
Weight: 20G per set.
Length: 36mm including wire cover.
Width: 27mm.
Max Wire Diameter: 6.8mm (6AWG )
