Traxxas 82216-4 TRX-4 Crawler Kit, Clipless

Description

Product Description

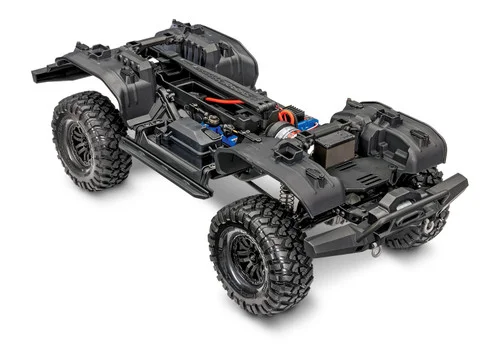

Traxxas 82216-4 TRX-4 Crawler Kit, Clipless (TRA82216-4)

The TRX-4® 1/10 Scale Trail Rock Crawler Assembly Kit offers an exciting hands-on experience, combining the thrill of off-road performance with the satisfaction of assembling your vehicle. Known for its rugged durability and innovative design, the TRX-4 set the standard for off-road versatility, and this kit version includes the same advanced features as the ready-to-run (RTR) model. Enthusiasts can build key components like portal axles, a high/low range transmission, and remotely locking differentials, gaining a deeper understanding of the vehicle’s mechanics. The kit is well-organized, with all parts neatly packed in labeled bags, including waterproof electronics and pre-assembled shocks and suspension links for convenience. A fully illustrated, color manual ensures a smooth and enjoyable building process, making this kit just as fun to construct as it is to tackle rough terrain.

Features:

Trail-tuned XL-5™ HV Waterproof Electronic Speed Control

• Five drive profiles (Sport Mode, Race Mode, Training Mode™, Trail Mode, Crawl Mode)
• Traxxas EZ-Set® one-button setup
• Large, efficient heat sink
• Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
• Two stage low voltage protection (LVD)

Powerful Titan® 21T reverse rotation motor

• Internal cooling fan
• Precise, preset gear mesh adjustments
• Motor retention separate from gear mesh
• Portal Axles
• Increase ground clearance (3.14″)
• Eliminate torque twist
• Steel gears
• Improve axle geometry and reduce strain on driveshafts

TQi™ 2.4 GHz Radio System

• 4-channel transmitter
• 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
• Adjustable steering and throttle endpoints
• Patented waterproof receiver box with easy-access plug

Rigid Steel Frame

• 1.5 mm thick steel frame rails increase torsional rigidity
• Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
• Adjustable rear shock tower positions for SWB and LWB configurations
• Bumpers adjust fore and aft
• Rugged rock rails adjust for width
• Wire routing clips integrated into frame rails
• Innovative Battery Compartment
• Hinged battery strap allows quick and easy battery access
• No pins to lose
• Accommodates different height batteries
• Accepts full-size long battery packs
• Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)

Driveline

• Full-time shaft driven 4-wheel drive
• Tough 6 mm stub axles
• Steel front CV driveshafts
• Hardened steel rear axle shafts
• Remote locking steel gear differentials with cable-actuation
• Steel gear transfer case

Transmission

• Two speed high/low range with remote shifting
• Dual horizontal shafts
• Twin friction plate slipper clutch
• Easily removed for servicing

Steering

• Chassis mounted 2075X metal gear digital servo
• Superior 45° steering angle
• Direct steering (no servo saver)
• Steering geometry corrected for bump steer

Suspension

• Front — 3 link with panhard
• Rear — Triangulated 4 link
• Heavy-duty rod ends with steel hollow balls
• 5 mm diameter steel link rods with 4 mm threaded ends
• Aluminum GTS Shocks
• Oil-filled coilover GTS shocks
• Silver-anodized aluminum bodies
• Threaded bodies with collars easily adjust ride height
• Silky smooth damping for the toughest trails
• O-ring cap seal and dual X-ring shaft seals

Wheels and Tires

• 1.9″ Canyon Trail tires with trail-tuned foam inserts
• Pre-glued and mounted to tough black scale wheels
• Trail tuned S1 rubber compound
• 12 mm steel hex
• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating
• Requires Battery and Charger (Sold Separately)

Specifications:

MOTOR SPECS

• Name: Titan® 21T Reverse Rotation
• Motor Type: High-torque brushed motor
• Weight: 8.47 ounces (240 g)
• Length: 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
• Diameter: 1.53 inches (39 mm)
• Shaft Size: 3 mm
• Connector Type: Bullet

ESC SPECS

Name: XL-5™ HV
ESC Type: Brushed
Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
Weight: 2.60 ounces (74 g)
Motor Connectors: Bullet
Battery Connectors: Traxxas High-Current Connector
Power Wire: 14 gauge

Needed to Complete:

• Batteries: TRX-4 accepts a wide variety of NiMH and LiPo batteries.
• Charger: Traxxas EZ-Peak® charger is recommended for easy and fast charging performance (model 2970).
• AA Alkaline: Batteries Four AA alkaline batteries for the transmitter.

Includes:

• (1) Unassembled TRX-4® Chassis Kit, TQi™ 2.4 GHz 4-Channel radio system, XL-5™ HV electronic speed control, and Titan® 21T 550 motor. Requires: body, battery, and charger.
• T-Lock Front And Rear Differentials
• Two-Speed Transmission
• XL-5 HV Power System
• TQi Radio System with Servos
• Full Color, Detailed Assembly Instructions
