Description

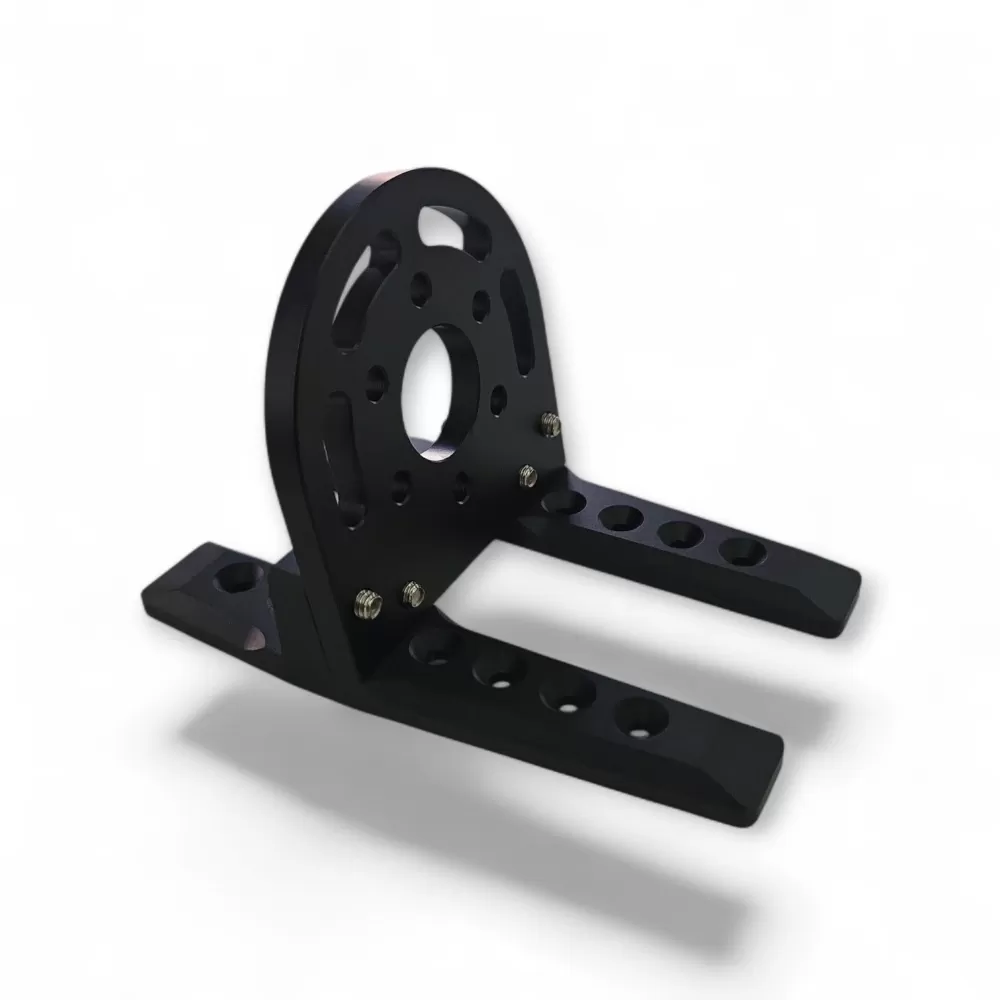

TFL Angled Motor Mount for 56mm motors. Works with the popular 56mm diameter motors. For example, Tp-56, Leopard 56, and SSS 56mm

The CNC-cut aluminum mount works well in narrow areas, such as catamaran sponsons, where there isn’t enough room for an adjustable mount. The fixed angle is rigid enough for the longest of 56mm motors. Shown in the picture with Leopard 5692 (not included) and Ham-leopard-56L water jacket (not included).

Specifications:
Motor holes are 30mm apart.
Holes for 4mm screws.
Width: 60mm (2.35″)
Length: 95mm (3.75″)
Weight: 80 grams.
Works with 4-bolt (using 2 bolts) or 6-bolt motors.

Requires:
Installation, Glue, and fiberglass to fix the mount into the hull. Motor mounting screws.
