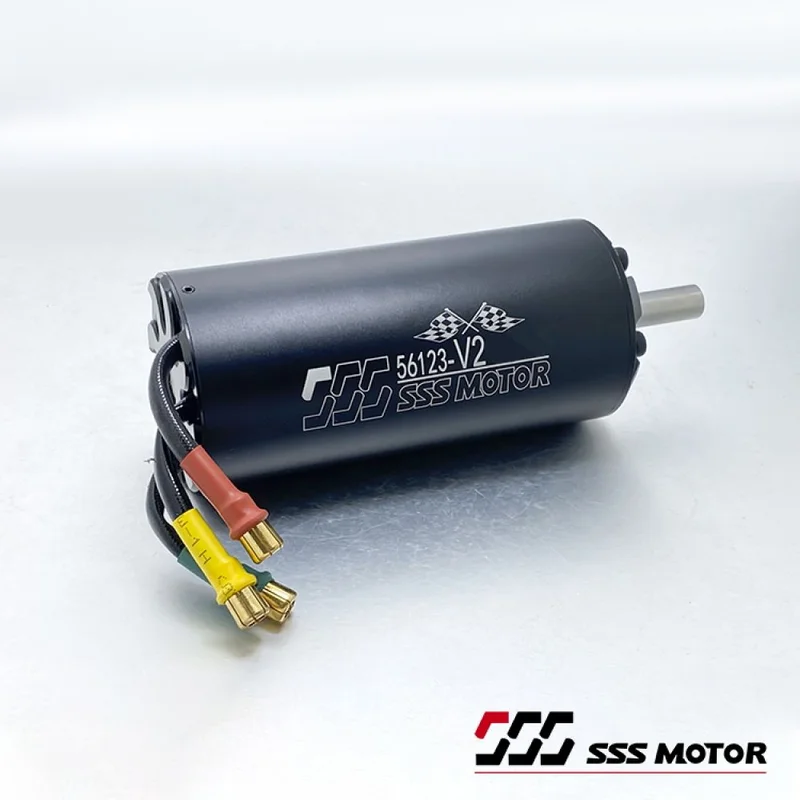

SSS 56123 v2 brushless motor.
Special while supplies last! Water Jacket included with TFL SSS Motor Purchase!
56mm Diameter by 123mm Long Brushless Motor by TFL Racing. Hand-wound for high efficiency of up to 90%. Comes with high-quality bearings and neodymium magnets for high power. Includes endbells that are assembled with screws for both strength and ease of maintenance.
Vented endbell and front mounting plate for additional air cooling.
6 Pole brushless motor
Specs:
Magnets: neodymium
Watts: 9,500 Watts Continuous, 15,800 Max Watts
Poles: 6
Motor Shaft: 10mm with flat spot
Can Measures: 56mm diameter x 123mm long
Weight: 1330 Grams
Mounting screw diameter required: 4mm
Bearing size:
Mounting Holes 30mm apart.
Motor Mount: This motor has a front plate that will fit a 2 or 6 hole motor mount.
Connectors: 8mm Male Bullet connectors preinstalled onto the motor.
OSE Suggests 20,000-35,000 total rpm for boats. We suggest most Fast Electric Boaters should run in the 25,000RPM range for Sport Boating or 30,000RPM Range for racing. These are only guidelines, we suggest if you do not have the knowledge to pick the correct motor, please consult us first or other members of the rc fast electric boating community. Either at a local club or on our OSE Forums.
