Description

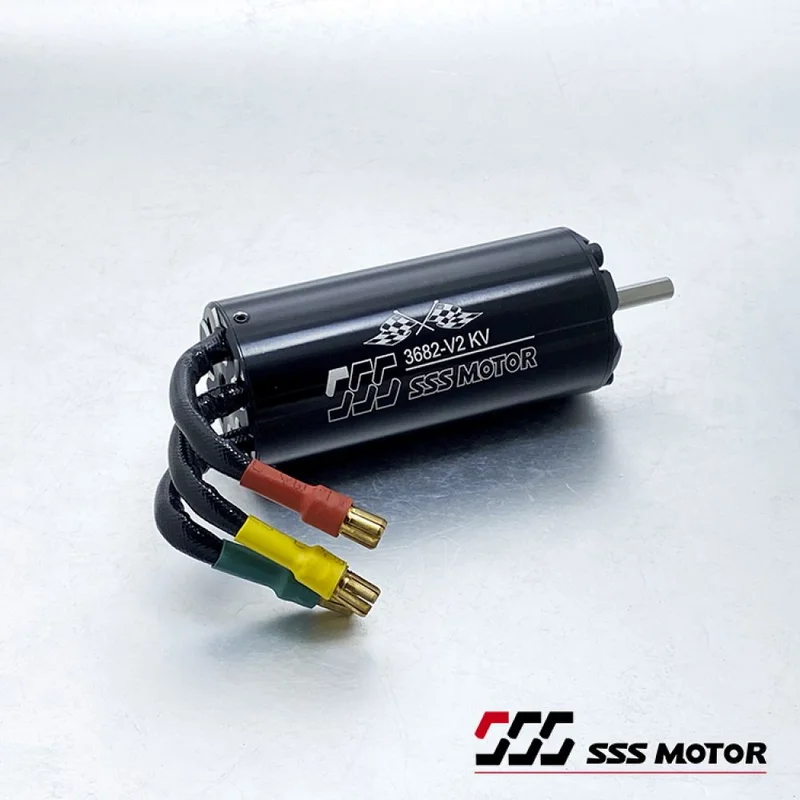

SSS 3682 V2 brushless motor.
Special while supplies last! FREE Water Jacket with TFL SSS Motor Purchase!
36mm Diameter by 82mm Long Brushless Motor by TFL Racing. Hand-wound for high efficiency of up to 90%. Comes with high-quality bearings and neodymium magnets for high power. Includes endbells that are assembled with screws for both strength and ease of maintenance.
Vented endbell and front mounting plate for additional air cooling.
4 Pole brushless motor
Specs:
Magnets: neodymium
Watts: 2000 Watts Continuous, 4500 Max Watts
Poles: 4
Motor Shaft: 5mm with a flat spot
Can Measures: 36mm diameter x 82mm long
Weight: 380 Grams
Mounting screw diameter required: 3mm
Mounting Holes 25mm apart for use with most 540 mounts.
Connectors: 6mm Male Bullet connectors preinstalled.
OSE Suggests 20,000-35,000 total rpm for boats. We suggest most Fast Electric Boaters should run in the 25,000RPM range for Sport Boating or 30,000RPM Range for racing. These are only guidelines, we suggest if you do not have the knowledge to pick the correct motor, please consult us first or other members of the rc fast Electric Boating community. Either at a local club or on our OSE Forums.
