Description

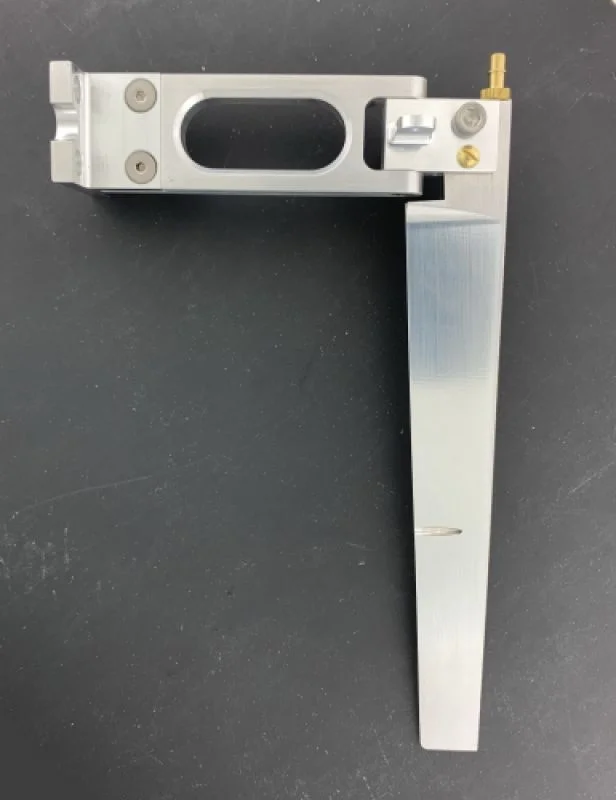

Speedmaster 21 Rudder Assembly w/ Extended Tee Bracket
Made of high-quality aluminum, CNC cut to tight tolerances. Each assembly has a breakaway brass screw in the rudder bracket to help minimize damage from the blade hitting an object while driving. Comes with basic mounting screws. Features an extended tee mounting bracket.
Available in Two Options:
Rudder Assembly with Single Pickup Blade, pn# ros-spdrs-009-21sngt
Rudder Assembly with Dual Pickup Blade, pn# ros-spdrs-009-21dut
Specs:
Total Weight: 85.04g (3oz)
Rudder Blade:
Total Length: 158.75mm (6.25″)
Leading Edge: 133.25mm (5.25″)
Width: 4.65mm (0.18″)
Mounting Plate:
Length: 25.5mm (1″)
Width: 28.5mm (1.12″)
Bracket (Mounting Plate & Tee Bracket):
Setback: 89mm (3.50″)
