Description

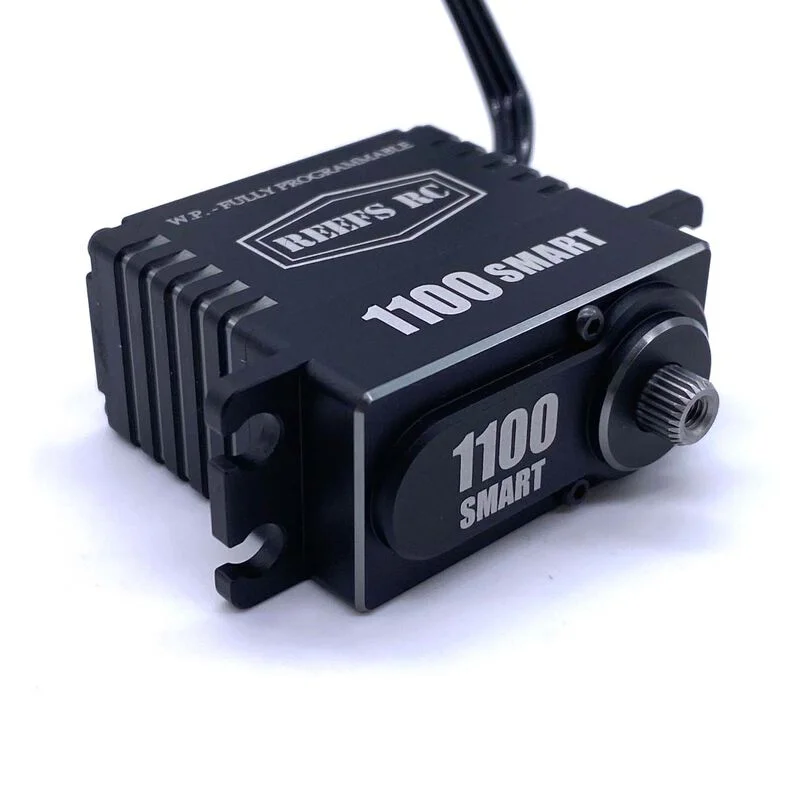

High Torque High Speed Brushless SERVO or WINCH
- Comes as SERVO out of the Box, can be changed to WINCH with the REEFS LINK and Software
- Built in Preprogrammed Winch Controller
- SUBMARINE WATERPROOF: 7 Point Seals w/ GRAY HEAT SINK
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- 4 Pole Brushless Motor
- Steel Gears / All CNC Aluminum Casing
1100 Digital Metal Gear Waterproof Programmable Servo & Winch, Black Product Specs
- Application1/10 Cars, Trucks- Winch/Steering (Programmable)
- BearingQuad Ball Bearings
- Bushing Or BearingBearing
- Connector TypeUniversal
- Current Draw Idle460mA @ 4.8V, 500mA @ 6.0V, 540mA @ 7.4V, 580mA @ 8.4V
- Current Draw Stall5.4A @ 4.8V, 6.0A @ 6.0V, 6.8A @ 7.4V, 7.5A @ 8.4V
- Deadband2µs
- Gear TypeMetal
- Input Voltage4.8V ~ 8.4V
- Maximum Servo Speed0.16 sec/60 deg @ 6.0V, 0.13 sec/60 deg @ 7.4V, 0.12 sec/60 deg @ 8.4V
- Maximum Servo Torque760oz/in @ 6V, 930oz/in @ 7.4V, 1100oz/in @ 8.4V
- Product Height1.5″ (38 mm)
- Product Length1.57″ (40 mm)
- Product Weight2.99oz (85g)
- Product Width0.79″ (20 mm)
- ProgrammableYes
- Servo Operating Voltage4.8 – 8.4V (HV)
- Servo Size CategoryStandard
- Servo TypeDigital
- Spline Count25 – Tooth
- Water-ResistantYes
