Description

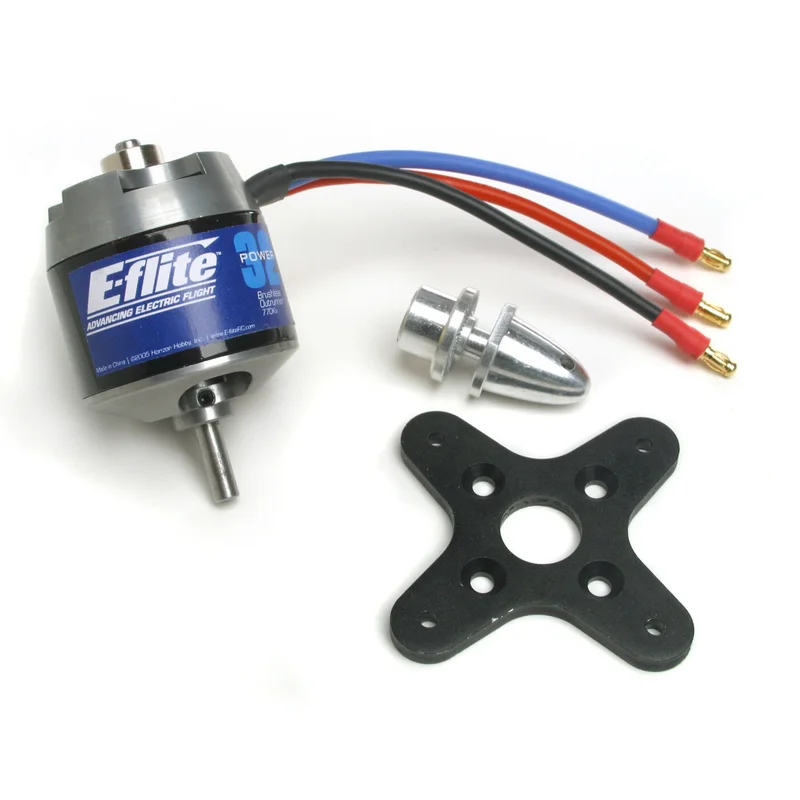

The Power 32 is designed to deliver clean and quiet power for 30- to 36-size sport and scale airplanes weighing 3.5 to 6 pounds (1.6 to 2.7 kilograms), 25- to 36-size 3D airplanes up to 4.5 pounds (2 kilograms), or models requiring up to 800 watts of power. It’s an especially good match for the Gee Bee Tiger Moth, TopFlite DC-3, Phoenix Sonic 25 and 3D airplanes such as the E3D.
- Equivalent to a 30- to 36-size glow engine for sport and scale airplanes weighing 3.5–6 lb (1.6–2.7 kg)
- Ideal for 25- to 36-size 3D airplanes up to 4.5 lb (2 kg)
- Ideal for models requiring up to 800 watts of power
- High-torque, direct-drive alternative to inrunner brushless motors

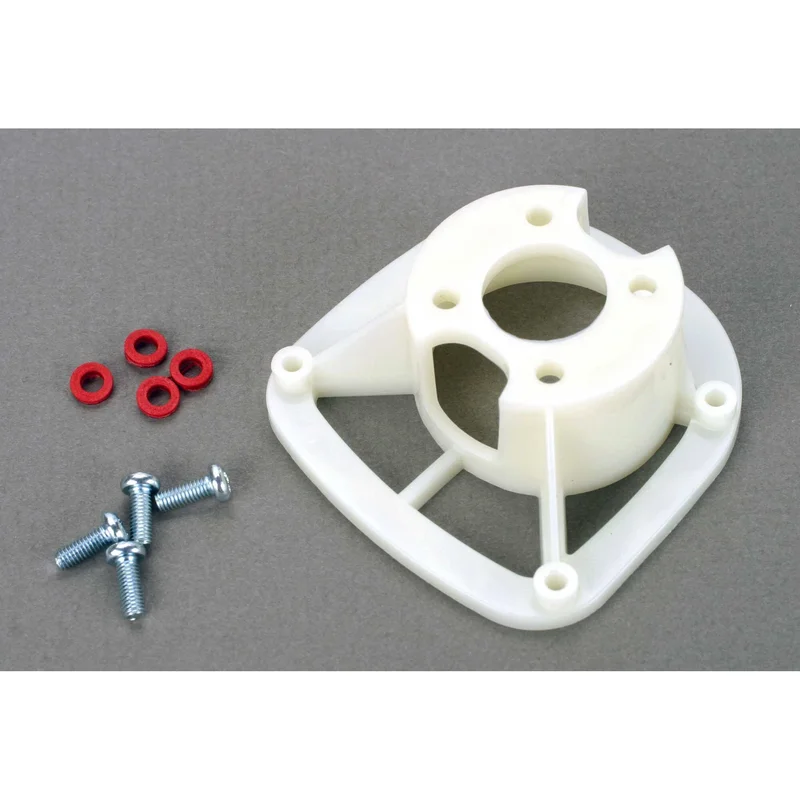

- Includes mount, prop adapter and mounting hardware
- Quite, lightweight operation
- External radial rotor design—5mm shaft can easily be reversed for alternative motor installations
- High-quality construction with ball bearings and hardened steel shaft
- Slotted 14-pole outrunner design
| Bearings or Bushings: |
One 5 x 14 x 5mm Bearing and One 5 x 11 x 5mm Bearing |
| Cells: |
10–16 Ni-MH/Ni-Cd or 3–5S Li-Po |
| Idle Current (Io): |
2.40A @ 10V |
| Motor Design: |
Outrunner |
| Overall Diameter: |
42mm (1.70 in) |
| RPM/Volt (Kv): |
770 |
| Recommended Prop Range: |
11×7 to 14×10 |
| Shaft Diameter: |
5mm (.20 in) |
| Size: |
Replacement for a 30- to 36-size glow engine |
| Voltage: |
12–16.8V |
| Wire Gauge: |
14 AWG |
- 60A brushless ESC
- 3–5S Li-Po or 10- to 16-cell Ni-MH/Ni-Cd
- 11×7 to 14×10 prop; 10x10E tested on 5S in Sundowner 36
