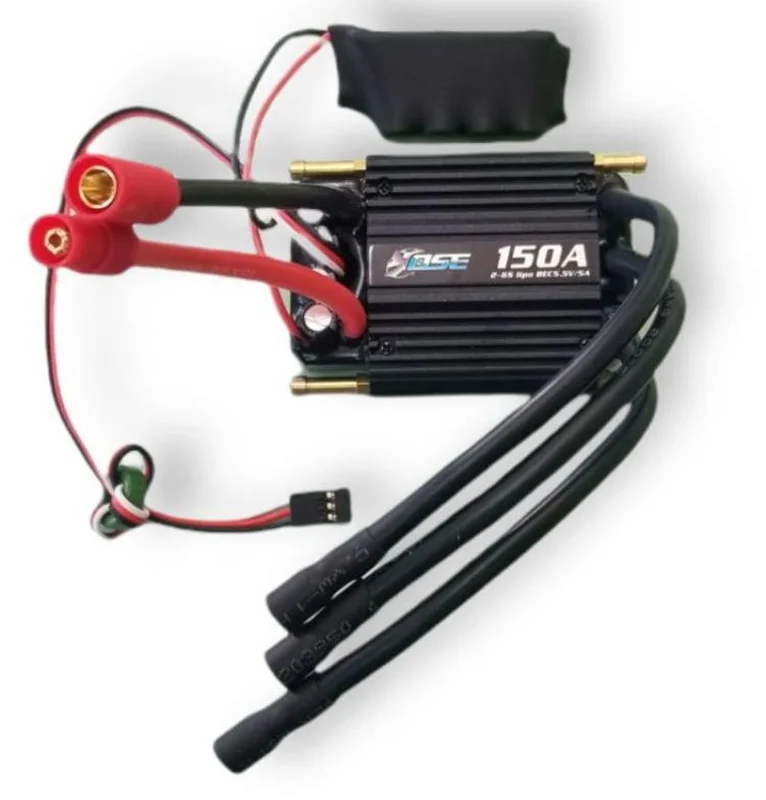

OSE Raider 150 Esc with Qs6 connectors Free Shipping

Description

OSE Raider 6s 150 Amp Esc with Qs6 connectors preinstalled for easy of installation. Designed with a large heat sink and dual water cooling tubes for superior cooling. Heavy 10 gauge wire and 4 capacitors.

We custom make the OSE Raider 150 ESC’s using a Fly Color 150 as our base unit, and then install the following to make them better.
– Extra capacitor bank for improved performance.
– Longer motor wires
– Preinstalled Qs6 6.00mm Bullet connectors on the battery side and OSE 6.00mm bullet connectors on the motor side.
– And most importantly, the after-sales service from OSE from within the USA. Instead of having to return things to China.

We made this super easy to install for stock setups, we have installed an OSE Qs6 connector on the battery side with OSE 6mm bullet connectors on the motor side. See picture 1 This allows a plug-and-play ESC when combined with the Leopard Motors we sell (contact us if in doubt about your setup), while allowing more amp draw due to the larger OSE Qs6 connectors we use.

We made this super easy to install with 2 connector options.
 – For modified setups, OSE-qs6p high amp connector on the battery side with 6mm female bullet connectors on the motor side. See picture 2

Using OSE 6mm bullet connectors on the motor side allows a plug-and-play ESC when combined with the Leopard Motors we sell (contact us if in doubt about your setup).

This ESC is specially designed for use in RC boats.
– Excellent waterproof design allows this ESC to work in wet conditions.

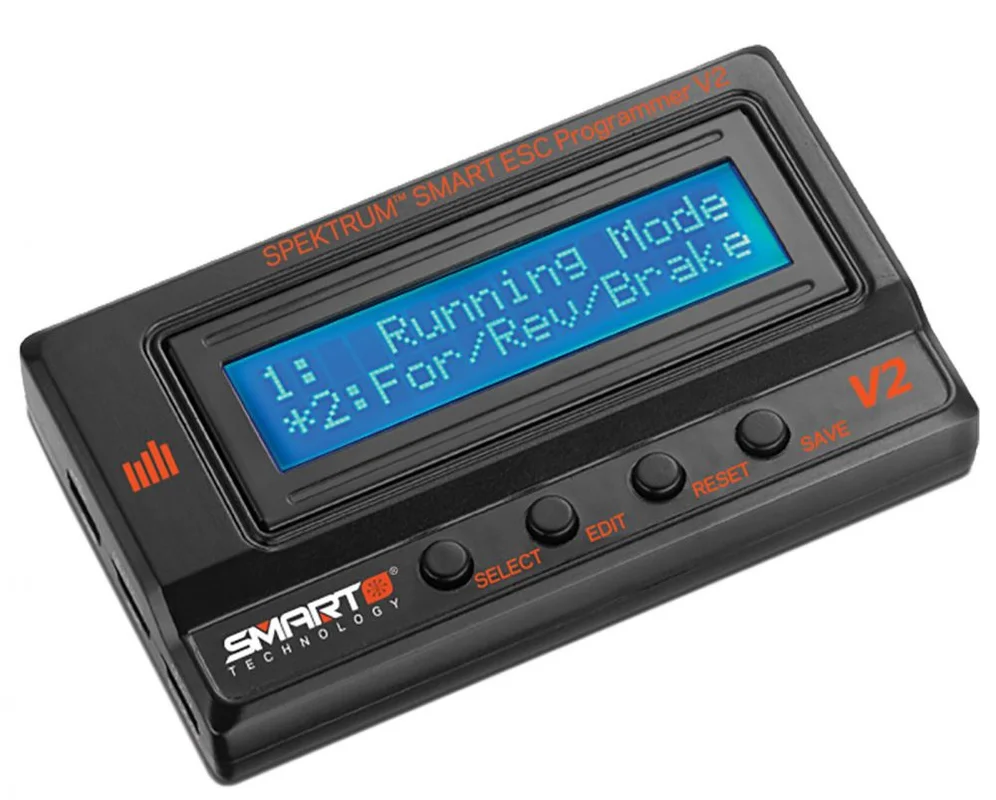

– Optional LED Program Box for easy setting of all the ESC’s parameters.
– Low voltage protection.
– Thermal protection, if the ESC goes over 100C (212F) the output will reduce to and not return to normal until the temperature reaches 80c (176F) or less.
– Built-in BEC (battery eliminator circuit) to power your receiver.
– Throttle signal loss protection.
– Programmable for Forward with Reverse or Forward only.

Specification:
– Continuous Current: 150 Amps
– Peak Current: 900 Amps. This is only for a brief second or so.
– Wire size: 10 Gauge
– Input: 2-6S (7.4volts – 22.2volts) Lipo
– BEC Type: Switch Model
– BEC Output: 5.5V/5A
– 2x Water Cooling Filling, 5mm threads.
– Weight: 215 Grams
– Size (excludes the Water Cooling Pipe): 76mm X 56mm X 25mm
– Connector: Battery side, Qs6
– Connector: Motor side: Female 6mm OSE<
– Water fitting thread size m5

Click here for full esc manual.

Click here for program box manual.

Includes:
(1) OSE Raider 150 Esc
(3) Installed ose-6bullet connectors soldered onto the ESC motor end.
(1) Installed ose-qs6p on the esc battery end.

Note: This ESC was designed to work in an environment where it’s possible for the ESC to get wet on occasion. Not for use underwater. OSE does not suggest using this item underwater! This ESC is suggested for smaller boats up to the 28″- 40″ (700mm – 1000mm) range. Because there are so many variables with each hull and installation it’s impossible to specify all the applications for this ESC. If you have any questions about using this ESC with your particular boat, please contact us before purchasing.
