Description

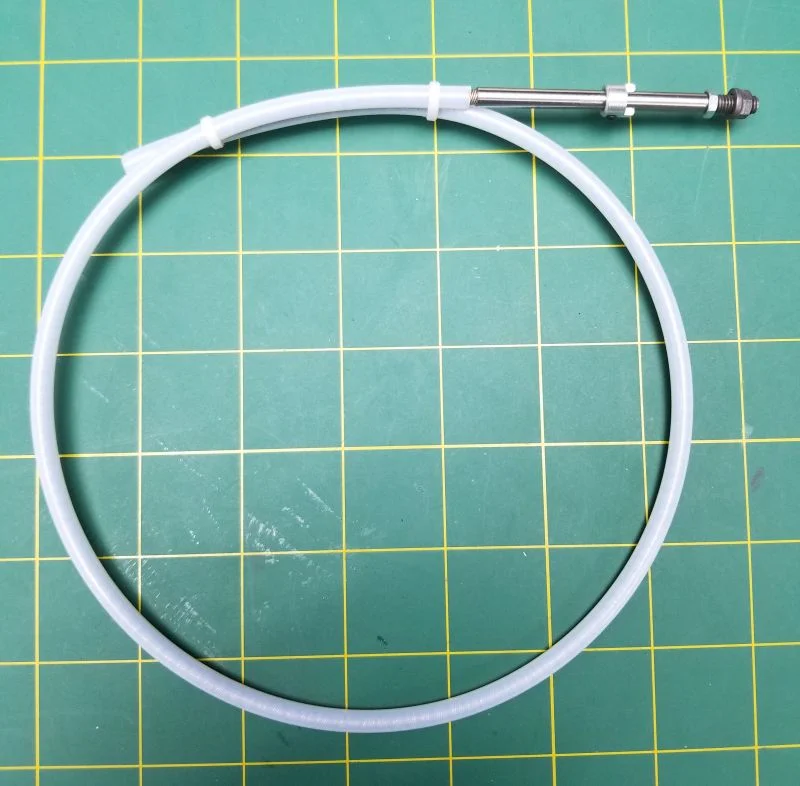

OSE assembled .150 flex cable with extra long 3.00″ (76mm) long 3/16″ prop shaft, drive dog, basic nut and teflon liner. Flex Cable is approx 18″ Long.
Our assembled systems use the latest in assembly technology. We don’t heat the cable in our process. This helps solve the breaking problems at the solder joint that other companies have.
Includes:
(1) .150 Flex Cable glued to 3/16″ (4.75mm) Shaft. 18″ (450mm) from end to end.
(1) Propeller shaft, 3/16″ (4.75mm) diameter, 3.00″ (76mm) Long, pn# oct-oc6150psL
(1) Drive Dog pn# tfl-512b22
(1) Prop Nut: pn# ose-8135
(1) Cable system approx 18″ long
(1) .150 Teflon Tubing: pn# oct-150T-24
Requires:
2mm Driver
1/4 OD K&S brass tubing pn# 8131 for stuffing tube when used with the Teflon liner.
7/32 OD K&S brass tubing pn# 8130 for stuffing tube when used with the NO Teflon liner.
– Cut the cable to the needed length.
– Make a flat spot on the shaft where you would like the drive dog set and tighten the 2mm grub screw.
