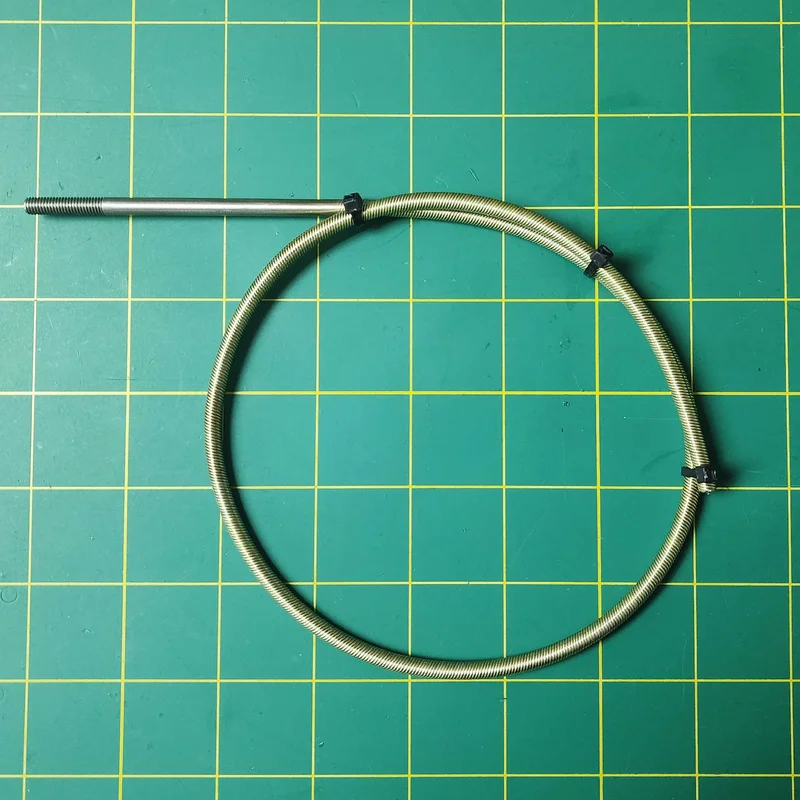

OSE 1/4″ reversed (right) cable with 1/4″ prop shaft x 32″ (800mm) Long

Description

OSE assembled .250 (1/4″) Reversed cable with 1/4 Propeller shafts. These can be used with 1/4″(.250″) struts.

NOTE: This is REVERSED CABLE. The cable in this package is made for propellers that spin clockwise, like the Octura “R” series right props or the Graupner left props.

Specs:
Flex Cable diameter: 1/4 (.250″, 6.35mm)
Propeller Shaft length: 4.40″ (114mm)
Propeller shaft diameter: 1/4″ (.250″, 6.35mm)
Assembled length: 32″ (800mm)

Requires:
1/4″ Drive Dog
1/4 threaded nut.
Teflon tubing 1/4″ size

Note:
The OSE listed length is the total assembled length. Measured from the end of the cable to the tip of the propeller shaft. Flex cable lengths are approximate. They can be plus or minus one-half inch. These assemblies require the customer to cut the cable to its required length.
