OSE .098 reversed (right) cable with 1/8″ prop shaft

Description

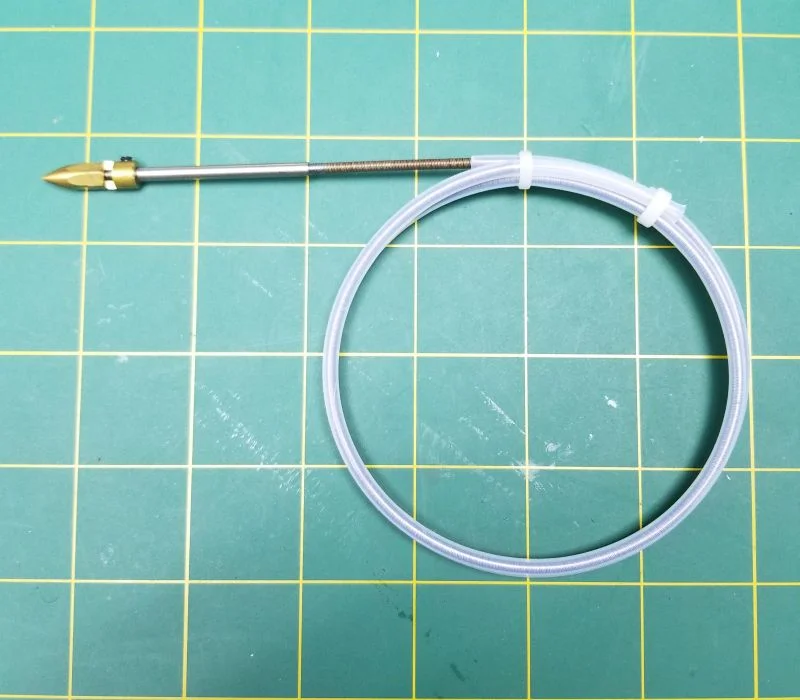

OSE assembled .098 flex cable with 1/8″ prop shaft, drive dog, bullet nut and teflon liner.

IMPORTANT:
The cable in this package is made for propellers that spin clockwise. For example, Octura props that end in the letter “R”, CNC Props that end in “R” or Graupner props that end in the letter “L”.

Our assembled systems use the latest in assembly technology. We don’t heat the cable in our process. This helps solve the breaking problems at the solder joint that other companies have.

Includes:
(1) .098 Flex Cable glued to 1/8″ (3.17mm) Shaft. 15″ (380mm) from end to end.
(1) Propeller Shaft, 1/8″ (3.17mm) diameter, 2.0″ (51mm) Long, pn# oct-oc4p
(1) Drive Dog pn# oct-oc4d
(1) Prop Nut: pn# oct-oc4pn
(1) Cable system approx 15″ (380mm) long
(1) .098 Teflon Tubing: pn# oct-098T-24

Requires:
1.5mm Driver
3/16 OD K&S brass tubing pn# 8129 for stuffing tube when used with the Teflon liner.
5/32 OD K&S brass tubing pn# 8128 for stuffing tube when used with NO Teflon liner.
– Cut the cable to the needed length.
– Make a flat spot on the shaft where you would like the drive dog set and tighten the 2mm grub screw.
