Description

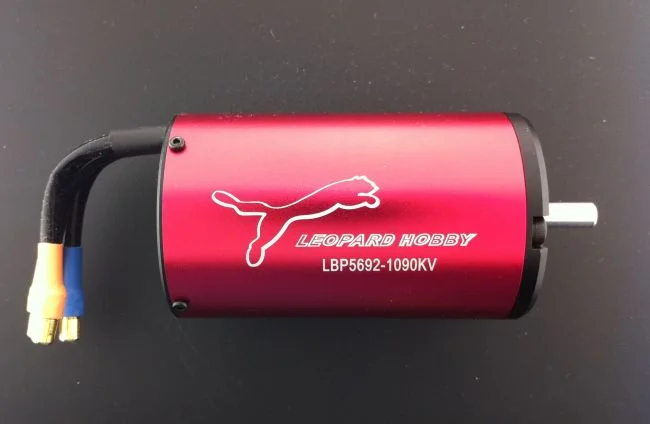

Leopard 5692 brushless motor.
Special while supplies last, includes water Jacket with Leopard Motor Purchase!
56mm Diameter x 92mm Long Brushless Motor by Leopard Power. Hand wound for high efficiency of up to 90%.
Comes with high quality bearings and neodymium magnets for high power. Includes endbells that are assembled with screws for both strength and ease of maintenance.
Specs:
Magnets: Neodymium
Watts: 3000 with Over 5000 Burst.
Poles: 4
Motor Shaft: 8mm
Can Measures: 56mm diameter x 92mm long
Mounting Screw diameter required: 4mm
Mounting Holes 30mm apart
Bearing size: 8mm wide x 19mm od x 6mm id
Weighs: 32 ounces
Vented can for extra cooling
Includes Leopard 6.0mm male bullet plugs soldered to the motor and a matching set for your esc connection.
OSE Suggests 20,000-35,000 total rpm for boats. We suggest most Fast Electric Boaters should run in the 25,000RPM range for Sport Boating or 30,000RPM Range for racing. These are only guidelines, we suggest if you do not have the knowledge to pick the correct motor, please consult us first or other members of the rc fast electric boating community. Either at a local club or on our OSE Forums.
