Description

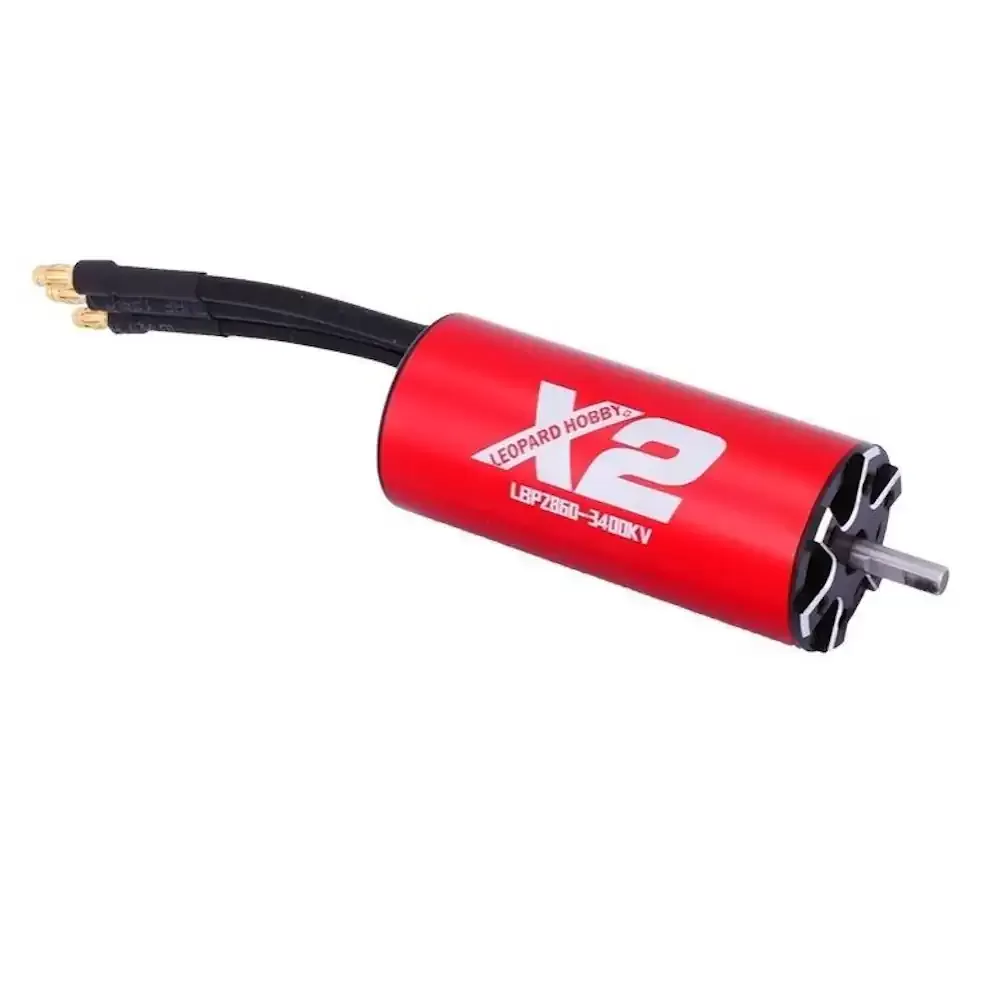

Leopard 2860 X2 Motor.
28mm Diameter by 64mm Long Brushless Motor by Leopard Power. Hand wound for high efficiency of up to 85%. Comes with high-quality bearings and neodymium magnets for high power. Vent cutouts in the front and rear endbells allow air to circulate for additional cooling.
Available in two versions.
3400 Kv/rpm per volt 3D
5050 Kv/rpm per volt 2D
Specs:
Magnets: Neodymium
Watts: 600 with up to 1200 burst.
Poles: 4
Motor Shaft Diameter: 4mm with flat spot
Can Measures: 28mm diameter x 64mm long
Weight: 190 Grams
Mounting screw diameter required: 3mm threads.
Mounting Holes: 2 mounting patterns for ease of installation. Both 16mm & 19mm apart. Works with all the 380 Motor mounts we sell.
Includes Leopard 3.5mm male bullet plugs soldered to the motor and a matching set for your esc connection
OSE Suggests 20,000-35,000 total rpm for boats. We suggest most Fast Electric Boaters should run in the 25,000RPM range for sports boating or the 30,000RPM Range for racing. These are only guidelines, we suggest if you do not know how to pick the correct motor, please consult us first or other members of the RC Fast electric boating community. Either at a local club or on our OSE Forums.
