Description
Hyperformance 7.5 Sized Bullet Drive Outboard motor leg.
If you are looking for all out speed or racing, this is the outboard for you. This kits includes all the parts to put togther a 7.5 sized outboard. Designed to handle the high power of a 40mm diameter brushless motor. For example Leopard 4074, 4082, 4092 series, Neu motors 15 series. This outboard is the next size up from the hpi-3.5-bullet-outboard and designed for larger boats in the 40″ (1000mm) range.
The Hyperformance 3.5, 7.5 & 11 Bullet Drives utilize a stainless tube for the cable guide. It is cast into the lower drive and does not require a teflon liner. The design reduces the drag on the cable vs. other available lower drives on the market.

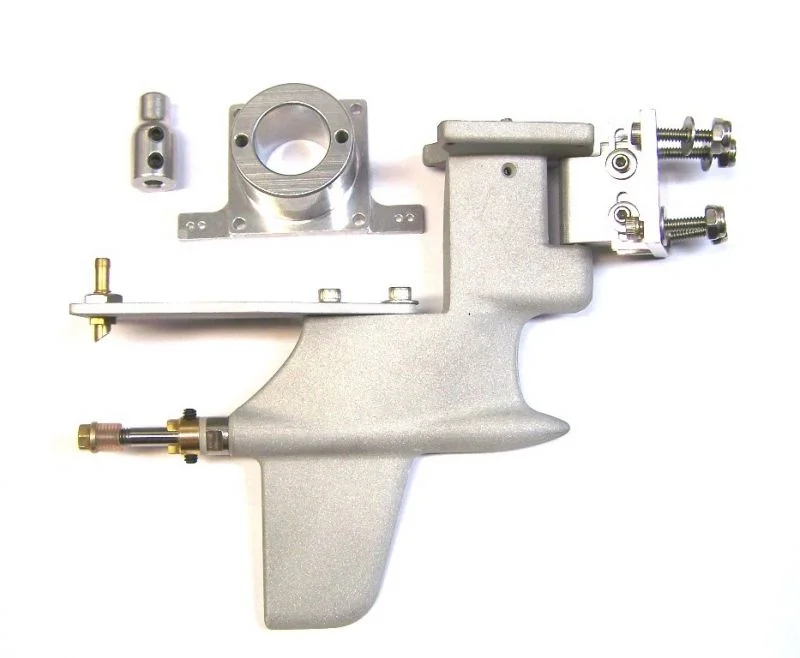

Comes with the following parts.
(1) pn#750bd Lower Unit
(1) pn#psa75 3/16″ Prop shaft and bushing assembly for 3/16″ props.
(1) pn#dc1875s2 .187 (4.75mm) diameter flex cable.
(1) pn# obmm75 adjustable swivel mount with both height and angle adjustment..
(1) Pn#eobck75-5mm which includes the a 5mm coupler for a brushless motor that has a 5mm shaft and brushless motor mounting plate for brushless motors that have a 25mm screw hole spacing. Motor mounting screws, 3mm.
Pictured with Leopard 4092 for reference only! NO MOTOR included!
Requires: Brushless motor with bolt pattern (25mm spacing).
Which motor will depend on your application. Email us for help with your specific project.
NOTE: 65mm maximum propeller diameter.
