Description

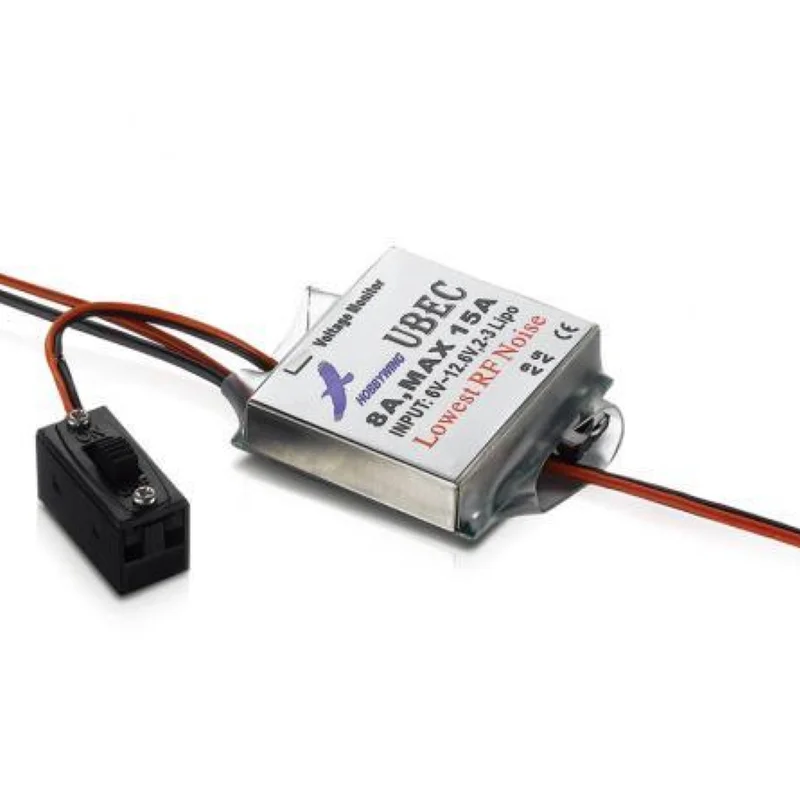

The 8A-UBEC is a switching-mode DC-DC regulator supplied with a 2-3 cells lithium battery pack and it outputs a consistent safe voltage for your receiver, gyro and servos. It is very suitable for nitro powered RC helicopter (bigger than 30 class) and big fixed-wing aircraft.
Compared with the linear mode UBEC, the overall efficiency of the switching-mode BEC is much higher, so it can extend the working time of the receiver battery pack, and because a switch mode UBEC can significantly reduce the heat emission, it can avoid the loss of control caused by the over-heat problem which is frequently happened with the linear mode UBEC.
1 Specification
1.1 Output Voltage: 5V or 6V (Changeable with an output-voltage select switch )1.2 Continuous output current: 8 Amps1.3 Burst output current: 15 Amps1.4 Input: 6V-12.6V (2-3 cells lithium battery pack)1.5 Quiescent current: 60mA1.6 Size: 42mm*39mm*9mm (length*width*height)1.7 Weight: 36g
2Features
2.1 Designed with an advanced switching-mode DC-DC regulator IC.2.2 The output current is very large.2.3 With the output short-circuit protection function.2.4 A metal shield covers almost all the electronic components, and a filter ring is attached to the output wires to significantly reduce the electromagnetic interference.2.5 Automatically detects the number of the lithium battery pack (2 cells or 3 cells).2.6 Shows the battery capacity with 4 indicators (LEDs). 2.7 Shows the working status with an indicator (LED), lights when the output is in a normal range.2.8 There is 2 output leads to reduce the resistance when connecting the UEBC to the receiver.
Accessory: A step-down voltage regulator wire (6V to 5.3V)Accessory:
Download User Manual (PDF)
