Product Description

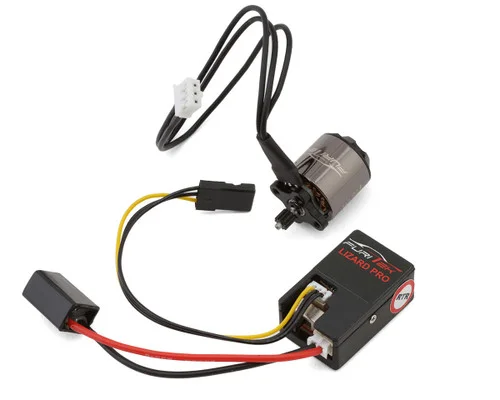

Furitek Traxxas TRX-4M Starter 118 2S Brushless ESC & Venom Motor Combo (3450kV)
TRX-4M Starter Combo Overview:
The Furitek Lizard Pro 30A Micro element resistant ESC is a Powerful ESC that delivers huge performance to small scale rock crawlers. Boasting a 30 amp continuous rating, adjustable 5A BEC, up to 3S LiPo support, and built-in wireless module programming capability! This ESC supports both brushed and brushless motors and uses FOC technology to give you a buttery smooth performance on the trail. The Furitek Venom 1212 3450kV 12-Pole hi-torque brushless Outrunner motor is designed to provide a buttery smooth feel at low and high RPM with incredibly high torque that will turn your TRX-4M into a crawling performance weapon! Designed to be a plug-and-play option for TRX-4M rock crawlers, this combo is an excellent upgrade if you are looking to bring your TRX-4M to the next level of high performance!
Note: This Combo is not compatible with stock TX/RX due to no channel 2 for external esc and requires a separate RX unit.
Features:
- Lizard Pro ESC
- Support Sensorless brushless DC and brushed DC motor (config via the app, default is brushless)
- FOC (Field-oriented control) technology
- Compatible with stock battery
- Built-in wireless
- Built-in switchable BEC
- Built-in switch power
- Super easy programming via App on both Android and IOS
- Lifetime free firmware updates
- Compact and lightweight
- Real-time telemetry up to 10Hz
- Venom Motor
- 12-Pole Outrunner design
- Super thin (0.2mm) stator laminations
- Precision balanced rotor, smoothness for best reliability and maximum RPM.
- Quiet and compact without sacrificing performance
- Extreme quality high temperature copper windings
- High strength steel pinion gear
Specifications:
ESC:
Input Voltage: 2S-3S LiPo
Waterproof: No
BEC: 5V-6.5V Switchable
Current:
Continuous: 30A
Peak: 50A
Dimensions (LxW): 28×15.5mm
Weight: (3.5g)
Motor:
Motor Type: Outrunner
KV: 3450kV
Pole: 12-Pole
LiPo: 2S
Power: 120W
Resistance: 0.16 Ohm
No Load Current(@10V): .07A
Size (Diameter x Length): 20×15.5mm
Weight: (17.5g)
Application: Micro Crawler
Includes:
(1) Lizard Pro 30A Brushless ESC
(1) Venom 1212 3450kV Brushless Motor
(1) Built-in Wireless Module
(1) 11T CNC Steel Pinion

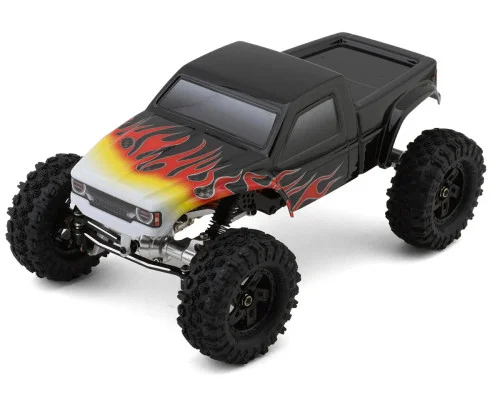

- Traxxas TRX-4M
