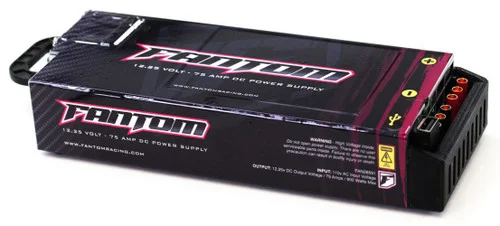

Fantom Racing 12 Volt 75 Amp/900 Watt w/ USB DC Power Supply

Description

Product Description

Fantom Racing 12 Volt 75 Amp/900 Watt w/ USB DC Power Supply

Get the most out of your battery charger with this high-performance power supply. It provides enough clean, reliable power to charge your batteries at even the most demanding charge rates that today’s high-end chargers are capable of.

Here is the formula you will need to determine how much power you need: Battery Pack Voltage x Desired Charge Rate (Amps) = Watts Needed

Example 1: 7.4v 2-cell LiPo x 20 amp charge rate = 148 watts required from power supply

Example 2: (Dual Charger) 2 x 7.4v 2-cell LiPo’s x 20 amp charge rate = 296 watts amps required from power supply

Features:

• 5 volt – 3 amp USB Port
• Over-Voltage Protection
• Low-Voltage Protection
• Over-Current Protection
• Over-Temperature Protection
• Short Circuit Protection
• 3 Sets of 4mm Female Gold Bullet Output Connectors
• Cooling Fan with Auto Fan Speed
• Completely Vinyl Wrapped with Premium Material and Fantom Graphics

Specifications:
Input Voltage: 100v to 240v AC (50-60 Hz)
Output Voltage: 12.25v DC
Output Current: 75A Max
Output Watts: 900W Max
5volt – 3 amp USB Port
Dimensions: 8.5 (9.75 with handle) x 3.5 x 1.5″ inches
Weight: Approximately 2.25 pounds

Includes:

• (1) 12 Vold DC Power Supply
• (1) Protective Cover to Protect Connectors
• (1) 6-Foot Heavy Duty Power Cord
• Handle
• Rubber Feet

Warning: DO NOT connect power supplies together in series to produce more voltage this can cause permanent damage to your power supply and/or charger, which is not covered under warranty.
