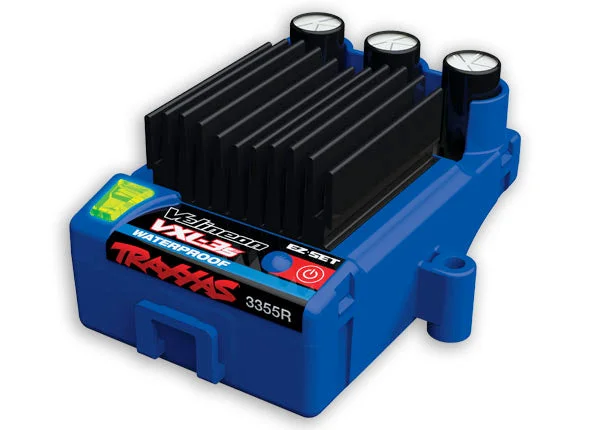

3355R Velineon VXL-3S ESC Wtrprf

• Patented Traxxas High-Current Connector eliminates a common bottleneck and maintains pure, unrestricted power flow from the battery to the brushless power system.
• Built-in two-stage low voltage detection for Lithium Polymer (LiPo) battery use provides a clear signal to the driver that the battery pack is nearing its minimum voltage threshold.
• Widest range of battery options ranging from 4-cell NiMH or NiCad packs all the way up to 3S LiPo battery packs (11.1 volt)
• The patented Training Mode™ is an exclusive Traxxas feature that reduces the overall power output of the VXL-3s by 50%, making it easier for new or younger drivers to control their model. When they’re ready, simply change profiles to unleash full-throttle action.
• The EZ-Set^® push-button setup operates and programs just like other Traxxas speed controls such as the XL-5. This eliminates the need to learn a new set of procedures.
• The VXL-3s is programmable with three drive profiles:
  • Sport Mode – Fwd / Brake / Rev
  • Race Mode – Fwd / Brake
  • Training Mode**™ – 50% Fwd / Brake / 50% Rev
• Multi-color LED provides clear feedback
• Two-stage thermal shutdown protection protects the VXL-3s from overheating.
• Locked Rotor Protection™ prevents system damage by cutting power if the vehicle is stuck or the motor is bound.
• Battery Over-Voltage Protection™ causes the ESC to go into failsafe mode if the maximum input voltage is exceeded.
• Water resistent case design uses rubber seals and o-rings to protect against damage caused by water and moisture.
• Micro-fin aluminum heatsink dissipates heat.
• The built-in auxiliary fan output powers a snap-on accessory fan for increased cooling capacity during extreme use. A handy clasp on the speed control case keeps the wire neatly in place until you are ready to use it.
• MOSFET design provides high-current output (320 amp peak) with incredibly low resistance (.00075 Ohm).
• Gold plated 3.5mm bullet connectors on 12-gauge Maxx^® Cable flow full power to the motor without performance strangling resistance.

• Traxxas VXL-3s Electronic Speed Control with 12 gauge motor and battery cables, three preinstalled 3.5mm female bullet motor connectors, Traxxas High-Current male battery connector, universal receiver connector and instruction manual

• Installing in vehicle and connecting to battery, receiver and motor

Input Voltage: 4.8 – 11.1V (4-9 NiMH, 2S-3S LiPo)

Motor Compatibility: Sensorless Brushless

Motor Limit: None

Battery Connector: Trasxxas High-Current

Motor Connectors: TRX 3.5 Bullet Connectors

Motor and Battery Wires: 12 gauge Maxx ccable

Continuous Current: 200A

Peak Current: 320A forward and reverse

BEC Current: 6.0V DC

Transistor Type: MOSFET

On-Resistance: 0.00075 ohms

PWM Frequency: 12,000Hz

Thermal Protection: Two-Stage Thermal Shutdown

Weight: 3.88 oz (110g)

Length: 2.29″ (58.17mm)

Width: 1.54″ (39mm)

Height: 1.2″ (30.48mm) including heatsink
